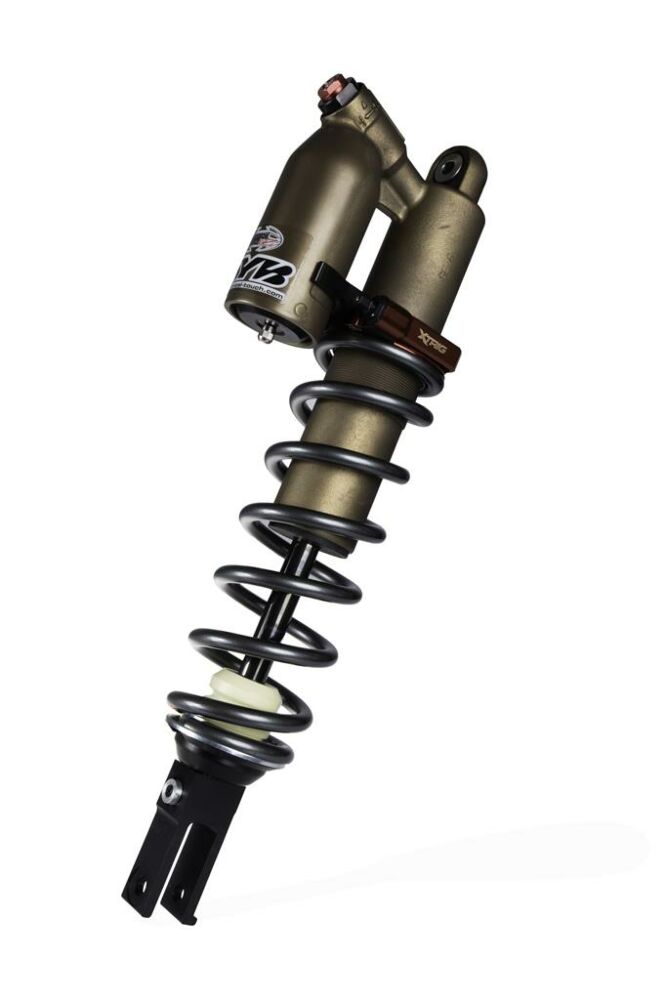

SHOCK ABSORBER ASSY KYB KIT BETA ENDURO 2020>

The KYB Factory Kit Shock features a Kashima coated shock body and DLC coated piston rod for minimal friction and increased surface hardness to survive those extreme conditions. An X-Trig Preload spring adjuster has been added for easier adjustments, making it the most versatile RCU available on the market! Additional adjustment of high speed rebound Increased traction and acceleration. With the possibility to adjust the high speed, you experience a different feeling caused by a better oil flow. Unlike the standard shock absorber, where the internal check valve spring is responsible for the high speed. The triple adjuster works the same as your standard one, the only difference is the fact of having 3 clickers for adjusting your compression and rebound and as mentioned before you will experience a better feeling on the bike.
£1,776.00 £1,480.00
SKU
162020002601
Technical data
SKU162020002601
SKU Weight (kg)6.000000
SKU Barcode1620200026014
Length (mm)490.00
Stroke (mm)136.00
Force in Bar10.00
BrandKYB
Upper Mount TypeEye
Upper Mount Width (mm)22.00
Upper Mount Bolt Diameter (mm)10.00
Lower Mount TypeFork
Lower Mount Width (mm)25.50
Lower Mount Bolt Diameter (mm)10.00
RCU Adjustment Ways5.00
RCU Body Diameter (mm)50.00
RCU Rod Diameter (mm)16.00
Fits to:
Additional adjustment of high speed rebound Increased traction and acceleration. With the possibility to adjust the high speed, you experience a different feeling caused by a better oil flow. Unlike the standard shock absorber, where the internal check valve spring is responsible for the high speed. The triple adjuster works the same as your standard one, the only difference is the fact of having 3 clickers for adjusting your compression and rebound and as mentioned before you will experience a better feeling on the bike.
